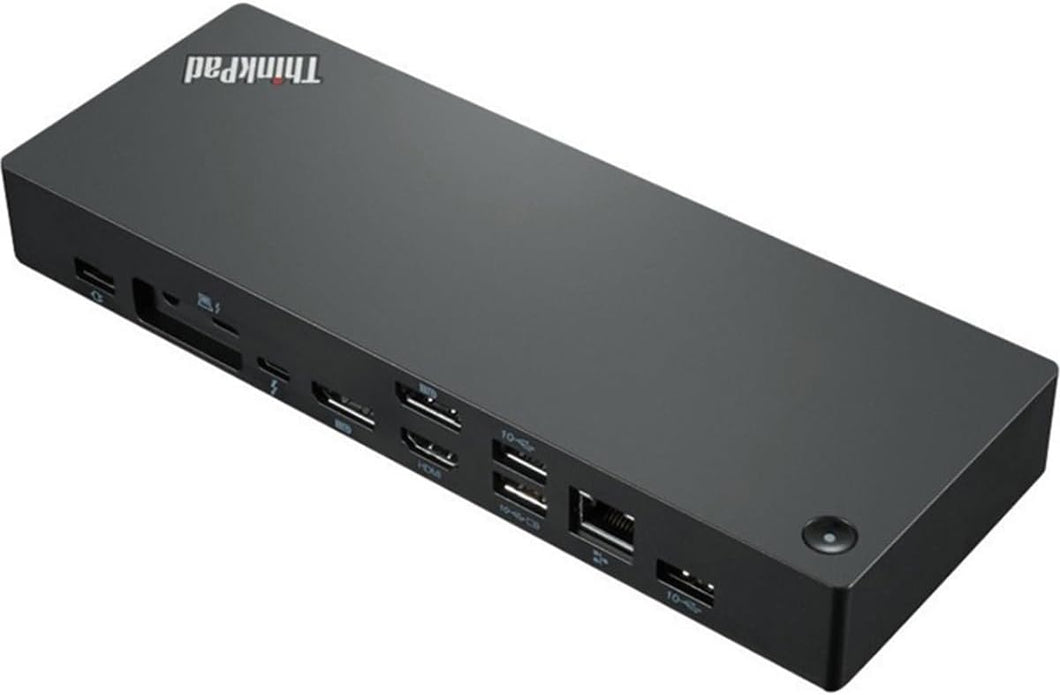

The Lenovo ThinkPad Thunderbolt 4 Workstation Dock (Part Number: 40B00300US) is a high-performance docking station designed to transform laptops and workstations into comprehensive desktop setups. It provides lightning-fast 40 Gbps data transfer speeds and delivers up to 230W of power.
Key Specifications
| Category
|
Details
|
|
Docking Interface
|
Thunderbolt 4 (via included Passive Split Cable)
|
|
Max Power Delivery
|
Up to 230W to workstation / laptop
|
|
Video Ports
|
1 x HDMI 2.1
2 x DisplayPort 1.4
|
|
Max Display Support
|
One \(8K @ 30\text{Hz}\)
Up to four \(4K @ 60\text{Hz}\) monitors
|
|
Data Ports
|
4 x USB-A 3.2 Gen 2 (1 always-on)
1 x USB-C
|
|
Networking
|
1 x Gigabit Ethernet (RJ-45)
|
|
Audio
|
1 x 3.5mm Combo Audio Jack
|
|
Physical Security
|
NanoSaver and MicroSaver lock slots
|
|
Dimensions & Weight
|
8.66" × 3.14" × 1.18" (220 mm × 80 mm × 30 mm); ≈ 1.16 lbs (525 g)
|
Enterprise Management: Supports silent firmware upgrades, vPro, AMT pass-through, and MAC address pass-through.
OS Compatibility: Officially supported on Windows 10 and above, with broad support for MacOS and Linux (dock functions may vary based on host system and peripheral capabilities).

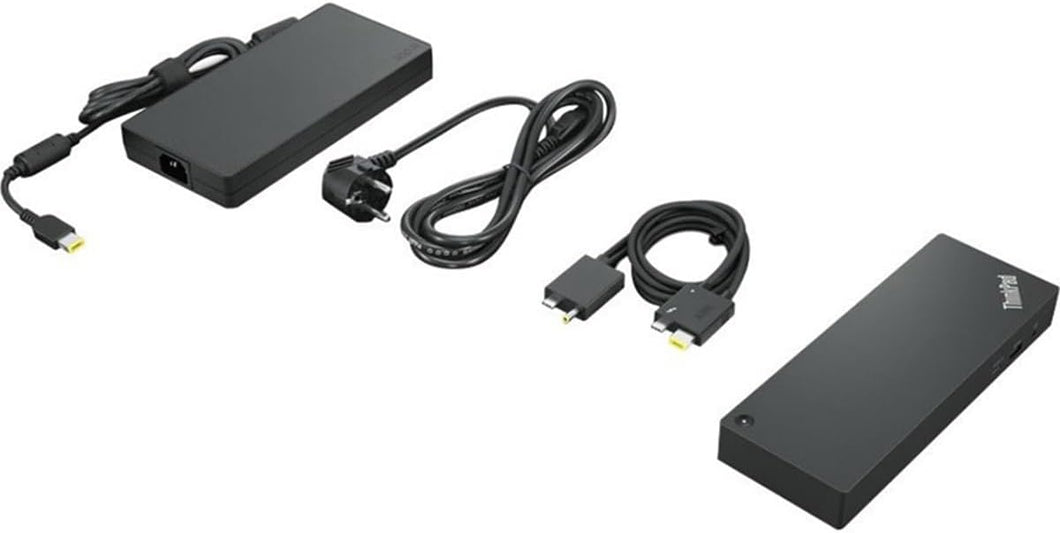

What's in the Box: Includes the ThinkPad Thunderbolt 4 Workstation Dock, ThinkPad 300W AC power adapter, power cord, and a Thunderbolt 4 passive split cable.
Condition: New Factory Sealed
