Dell Pro Thunderbolt 4 Smart Dock SD25TB4 – New F/S
Regular price
$220.00
Sale
31 in stock
Dell Pro Thunderbolt 4 Smart Dock SD25TB4 – USB-C Station 130W, 4 Displays 4K, 2X DP 1.4, HDMI 2.1, 2X Thunderbolt 4, 2.5GbE, Wi-Fi, Sustainable Design

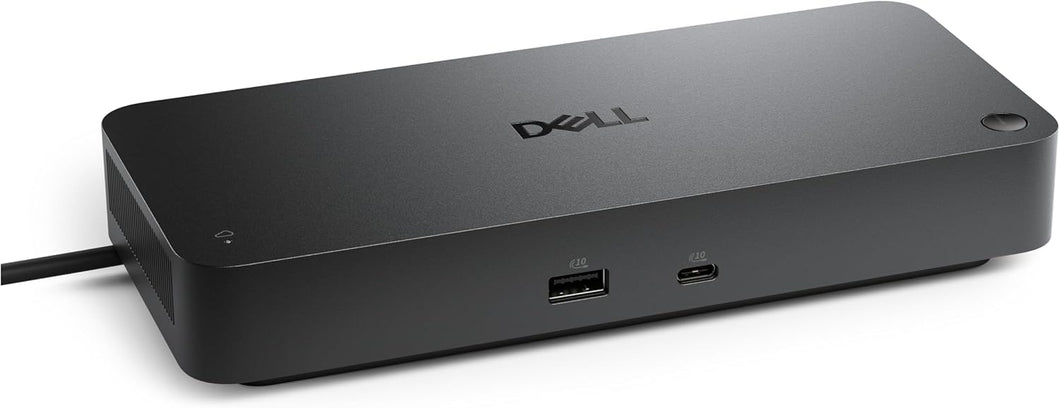

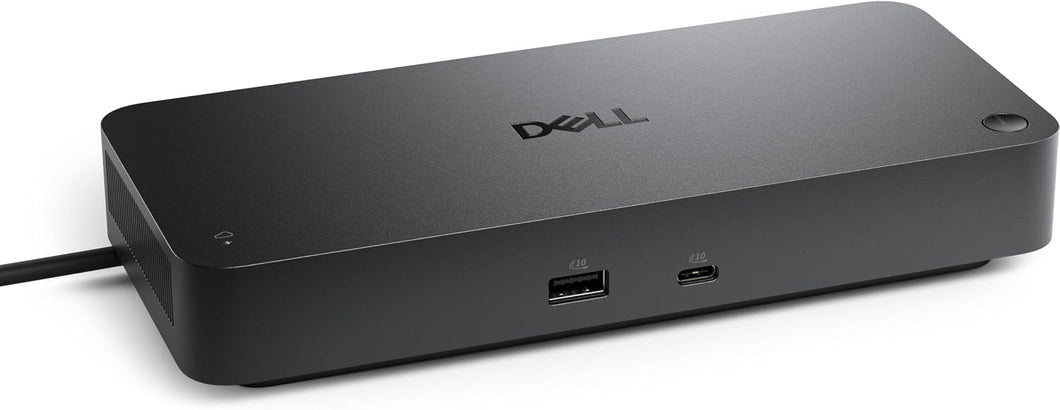

The Dell Pro Thunderbolt 4 Smart Dock (SD25TB4) is a high-performance dock designed to deliver up to 130W of power delivery to Dell systems (and up to 96W to non-Dell systems). It supports up to four external monitors and features enterprise-grade IT management over Wi-Fi, advanced security, and 2.5 GbE Ethernet networking.
Operating System Compatibility
Windows (10/11): Provides the most seamless experience, allowing for multi-stream transport (MST) to drive up to four monitors, remote IT management, and dock power button synchronization.
macOS: Compatible, but with some limitations. Apple hosts do not natively support MST (Extended Desktop mode) over multi-port docks unless you use specific workarounds, and the dock’s power button will only wake the Mac if you have an active Dell system.
Ubuntu & Chrome OS: Supported, but specific enterprise features may vary.
Hardware Requirements & Performance
Monitors: Can support up to four external displays (exact resolutions depend on the host's graphics capabilities) using the two DisplayPort 1.4, one HDMI 2.1, and Thunderbolt 4 ports.
Compatibility with Other Brands: Works with non-Dell laptops that feature Thunderbolt or USB-C DisplayPort Alt Mode, though power delivery maxes out at 96W.
Enterprise Features: As a "Smart" dock, it includes remote Wi-Fi management, Intel AMT over Thunderbolt, MAC address pass-through, and Wake-On-LAN, ideal for corporate IT environments.
Key Specifications
| Category | Specification Details |
|---|---|
| Docking Interface | Thunderbolt 4 (Type-C) with an integrated 0.83m cable |
| Power Delivery | Up to 130W for Dell Commercial systems, 96W for non-Dell; uses 180W AC adapter |
| Video Output Options | • Up to 1 × 8K (7680 × 4320) @ 60Hz • Up to 2 × 6K (6144 × 3456) @ 60Hz • Up to 4 × 4K (3840 × 2160) @ 60Hz |

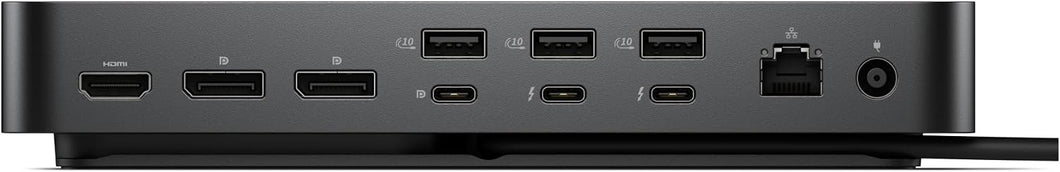

| Video Ports | • 2 × DisplayPort 1.4 • 1 × HDMI 2.1 • 1 × USB-C 3.2 Gen 2 (Multi-function DisplayPort 1.4 Alt-Mode) • 2 × Thunderbolt 4 |
| USB Data & Power Ports | • 4 × USB-A 3.2 Gen 2 (10 Gbps) • 1 × USB-C 3.2 Gen 2 (10 Gbps) All USB ports provide power whether connected to a PC or not. |
| Networking | 1 × RJ-45 port (supports 2.5 Gbps / 1 Gbps / 100 Mbps) |
| Host Management | • Intel AMT over Thunderbolt (on select Intel vPro PCs) • MAC address pass-through, PXE Boot, Wake-on-LAN • Kernel Direct Memory Access (DMA) protection |
| Security & IT Features | Remote Wi-Fi management with WPA3 encryption |
| Sustainability | Crafted from 65% recycled plastic with 100% recyclable packaging |
Condition: New Factory Sealed
